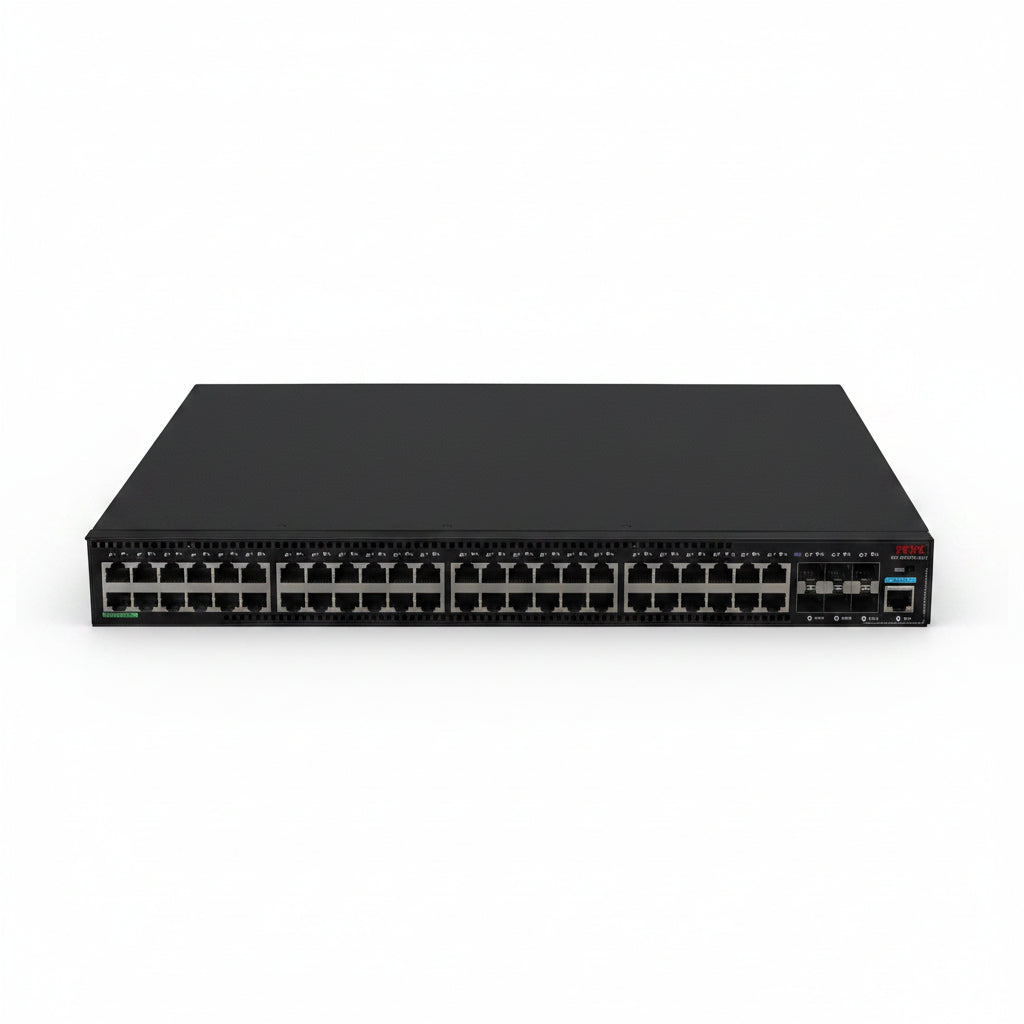

H3C LS-5570S-54S-EI-GL 48-Port Gigabit + 6×10G SFP+ L3 Managed Switch (No PSU)

Product Overview

The H3C LS-5570S-54S-EI-GL is a genuine Layer 3 managed Ethernet switch engineered for enterprise campus access, data center aggregation, and high-density device connectivity. With 48 × Gigabit RJ45 ports for desktops, Wi-Fi 6 APs, and IP cameras, plus 6 × 1G/10G SFP+ uplinks for fast backbone interconnection, it delivers non-blocking wire-speed performance across every port.

Backed by IRF2 virtualization, full IPv4/IPv6 Layer 3 routing, and enterprise-grade security, this switch is built to scale with your network. Compatible power modules (CA-70A12 or PSR75-12A) are sold separately.

Key Features

• 48 × Gigabit RJ45 Ports: High-density 10/100/1000BASE-T connectivity for desktops, Wi-Fi 6 APs, servers, and IP cameras.
• 6 × 1G/10G SFP+ Uplinks: Flexible high-speed backbone interconnection and fiber expansion.
• Layer 3 Routing: IPv4/IPv6 dual stack, static routing, OSPF, BGP — ready for complex enterprise network topologies.
• IRF2 Stacking: Virtualize multiple switches into a single logical unit for simplified management and high redundancy.
• Advanced Security & QoS: ACLs, 802.1X authentication, storm control, and 8-level QoS queues for intelligent traffic prioritization.
• 1U Rack-Mount Design: Compact, durable metal chassis fits standard 19-inch server racks.

Technical Specifications

• Model: H3C LS-5570S-54S-EI-GL
• Type: Layer 3 Managed Ethernet Switch
• Ports: 48 × Gigabit RJ45 + 6 × 1G/10G SFP+ + 1 × Console (RJ45) + 1 × Management Ethernet
• Switching Capacity: 688 Gbps / 6.88 Tbps
• Forwarding Rate: 161 Mpps
• Dimensions (W×D×H): 440 × 360 × 43.6 mm (1U Rack-Mount)
• Weight: ≤ 6.0 kg (without power supply)
• Power: External PSU required — NOT included. Compatible with H3C CA-70A12 / PSR75-12A
• Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F)
• Certifications: CE, FCC, RoHS

Ideal Applications

• Enterprise campus access and aggregation layers
• Data center server access and interconnection
• High-density Gigabit device connectivity (desktops, Wi-Fi 6 APs, IP cameras)
• Small to medium enterprise (SME) backbone networks

Package Includes

• 1 × H3C LS-5570S-54S-EI-GL Switch Chassis
• 1 × Console Cable
• Mounting Brackets & Screws
• User Manual & Warranty Card

⚠️ Important: This switch does NOT include a power supply. Please purchase a compatible H3C power module (e.g., CA-70A12 or PSR75-12A) separately. For optimal performance, pair with H3C SFP-GE-LX (Gigabit) or SFP-XG-LX (10G) optical transceivers (sold separately).
