H3C S5570S-54F-EI 48-Port 1G SFP + 6-Port 10G SFP+ L3 Switch (No PSU)

Product Overview

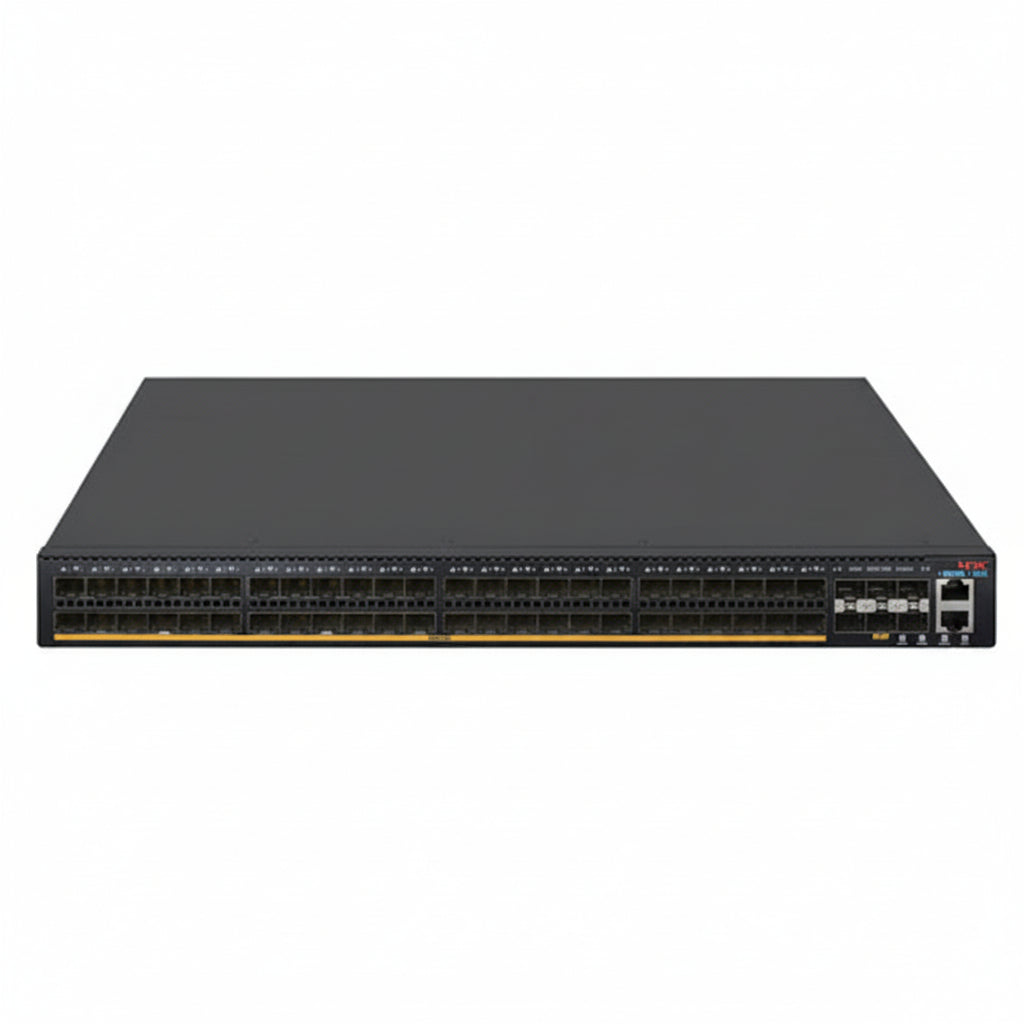

The H3C S5570S-54F-EI is a high-density, 1U rack-mountable Layer 3 Ethernet switch built for enterprise campus networks, data center access and aggregation layers, and high-density fiber deployments. With 48 × 1000BASE-X SFP ports and 6 × 1G/10G SFP+ uplink ports, it delivers full wire-speed forwarding performance across all ports — no bottlenecks, no compromises.

Whether you're consolidating a fiber-heavy campus backbone, building out a surveillance network, or scaling a data center access layer, the S5570S-54F-EI gives you the Layer 3 intelligence and redundancy features to do it right. Power supply modules are not included — dual PSU slots support flexible, redundant power configurations.

Key Features

• High-Density Fiber Ports: 48 × 1000BASE-X SFP + 6 × 1G/10G SFP+ for all-fiber, high-throughput connectivity.
• Wire-Speed Forwarding: 688 Gbps switching capacity and up to 363 Mpps packet forwarding rate.
• Rich Layer 3 Routing: IPv4/IPv6 dual stack, static routing, RIP, OSPF, BGP, VRRP, and more.
• IRF2 Virtual Stacking: Simplify management and boost redundancy by virtualizing multiple switches into one logical device.
• Dual PSU Slots: Supports redundant power supply configuration for high availability (PSUs sold separately).
• 1U Rack-Mountable: Space-efficient form factor for standard 19-inch racks.

Specifications

• Model: H3C S5570S-54F-EI
• Type: Layer 3 Ethernet Switch
• Ports: 48 × 1000BASE-X SFP + 6 × 1G/10G BASE-X SFP+
• Switching Capacity: 688 Gbps / 6.88 Tbps
• Packet Forwarding Rate: Up to 363 Mpps
• Dimensions (W×D×H): 440 × 460 × 43.6 mm (1U)
• Weight: ≤ 4.5 kg / 9.92 lb (without power supply)
• Form Factor: 1U Rack-mountable
• Power Supply: Dual PSU slots (power modules NOT included)
• Operating Temperature: 0°C to 45°C

Applications

• Enterprise campus core and aggregation layers
• Data center access and aggregation
• High-density fiber connectivity deployments
• IP surveillance and security networks
• Office backbone networks

⚠️ Note: Power supply modules are NOT included. Please purchase compatible PSUs separately.
