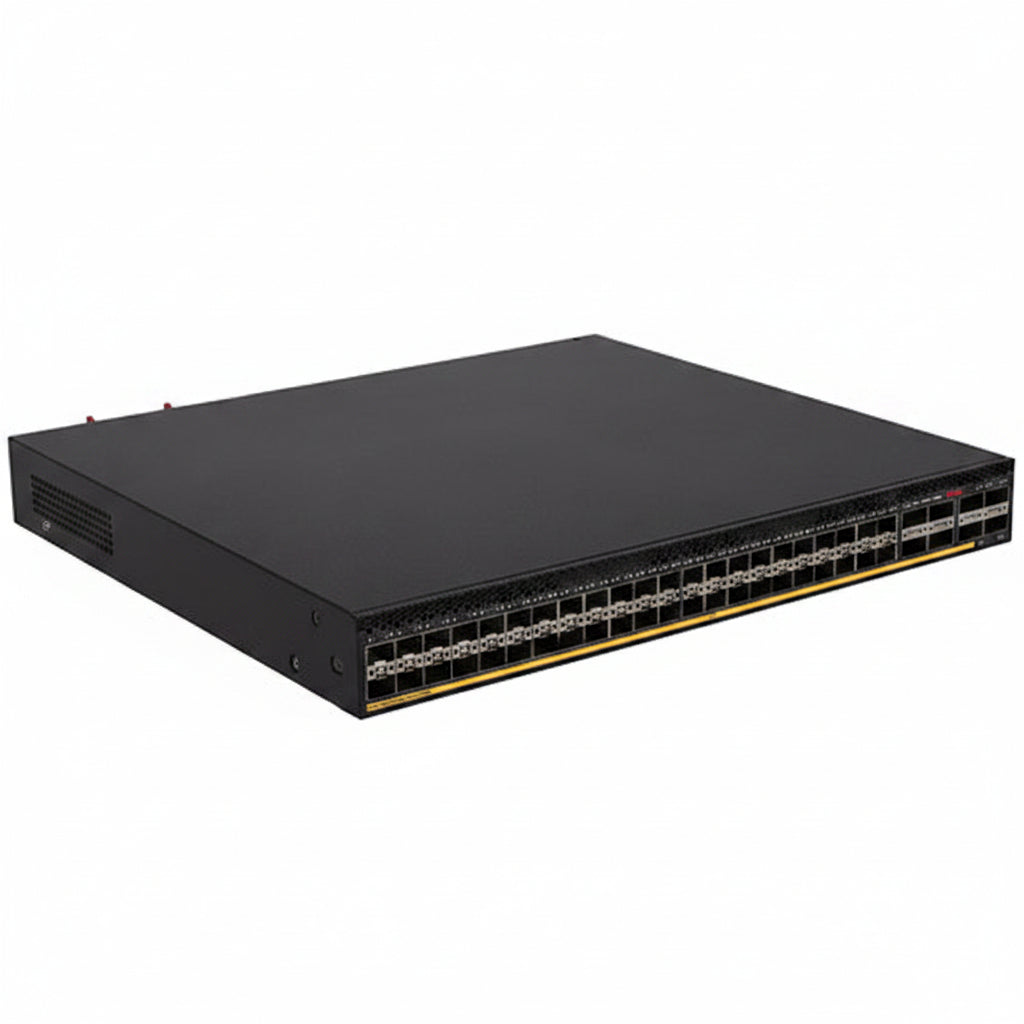

H3C S6880-48Y8C 48-Port 25G SFP28 & 8-Port 100G QSFP28 L3 Data Center Switch (Chassis Only)

Product Overview

The H3C S6880-48Y8C is a high-performance, 1U rack-mountable Layer 3 data center switch designed for top-of-rack (ToR) deployment, cloud computing, virtualized infrastructure, and high-density server access. This listing includes the switch chassis without power supply units (PSUs). It provides wire-speed 25G server connectivity and 100G uplinks, supporting advanced data center features such as VXLAN, EVPN, M-LAG, IRF2 virtualization, and RoCEv2 for lossless Ethernet.

Key Features

• High-Density 25G/100G Ports: 48 × SFP28 ports (10G/25G) + 8 × QSFP28 ports (40G/100G) for non-blocking, high-throughput networking.
• Powerful Layer 3 Performance: Supports static routing, RIP, OSPF, BGP, IS-IS, IPv4/IPv6 dual stack, and wire-speed packet forwarding.
• Data Center Optimization: VXLAN, EVPN, M-LAG, IRF2, RoCEv1/v2, PFC, ETS, and DCBX for NVMe-oF, storage networks, and low-latency applications.

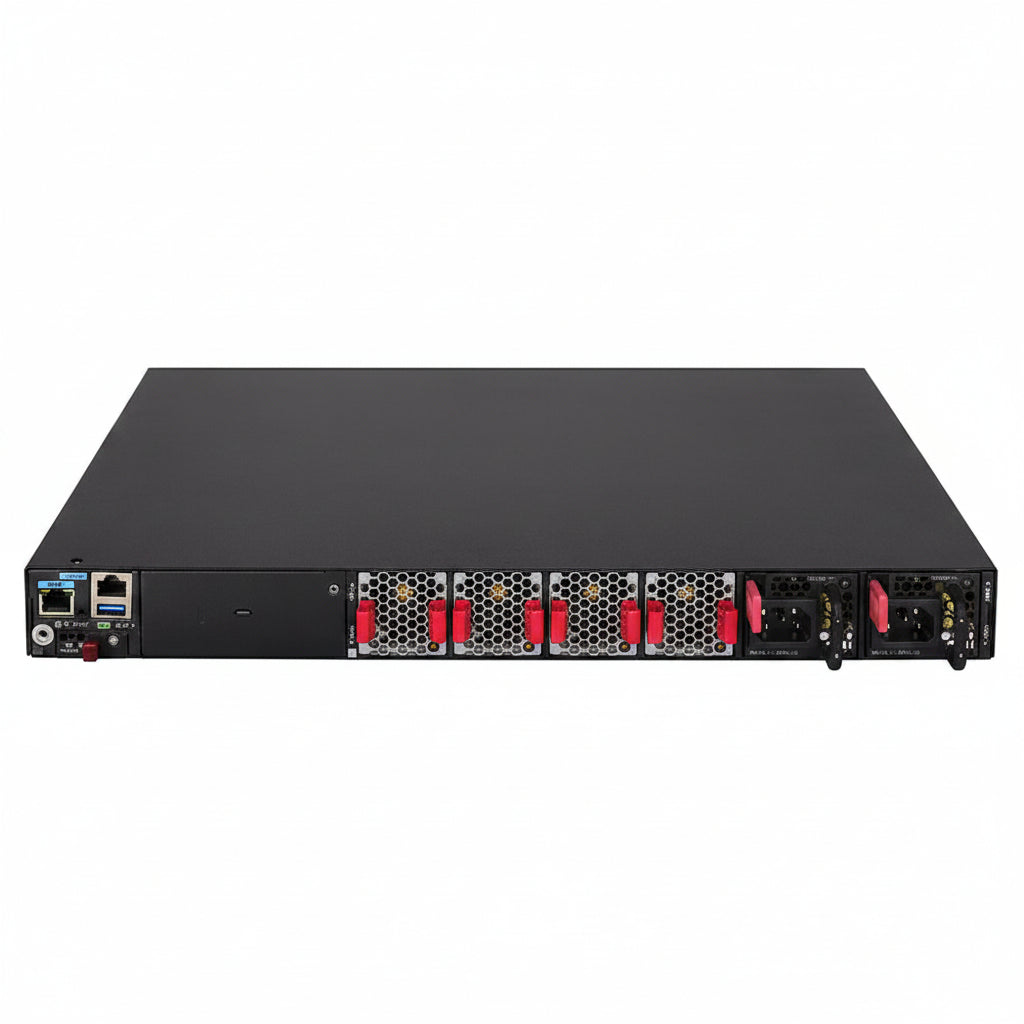

• Modular & Reliable Design: 1U form factor, hot-swappable fan modules, dual redundant power supply slots (PSUs not included).
• Flexible Management: Comware OS, CLI, Web GUI, SNMP, NetConf, OpenFlow, and SDN controller compatibility.
• Enterprise-Grade Security: 802.1X, ACLs, AAA, DHCP Snooping, IP Source Guard, and DoS defense.

Specifications

• Model: H3C S6880-48Y8C
• Ports: 48 × SFP28 (10/25GbE), 8 × QSFP28 (40/100GbE), 1 × RJ45 Console, 1 × RJ45 Management, 1 × USB
• Switching Capacity: Up to 76.8 Tbps
• Packet Forwarding Rate: Up to 3200 Mpps
• Layer 3 Features: IPv4/IPv6, Static Routing, RIP, OSPF, BGP, IS-IS, VXLAN, EVPN
• Virtualization: IRF2, M-LAG
• QoS: Priority queuing, traffic shaping, congestion management
• Power: Dual modular PSU slots (PSUs NOT included)
• Cooling: Hot-swappable fan modules
• Dimensions: 440 × 400 × 44 mm (1U)
• Rack Mount: 19-inch rack-mountable

Applications

• Cloud data centers and enterprise server farms
• High-density 25G server access
• Virtualized and hyper-converged infrastructure
• NVMe-oF storage networks
• High-performance computing (HPC)
• Campus core and aggregation layers

Package Includes

• 1 × H3C S6880-48Y8C switch chassis
• Rack mount brackets
• Console cable
• Quick start guide

⚠️ Note: Power supply units (PSUs) are NOT included. Please purchase compatible PSUs separately.
