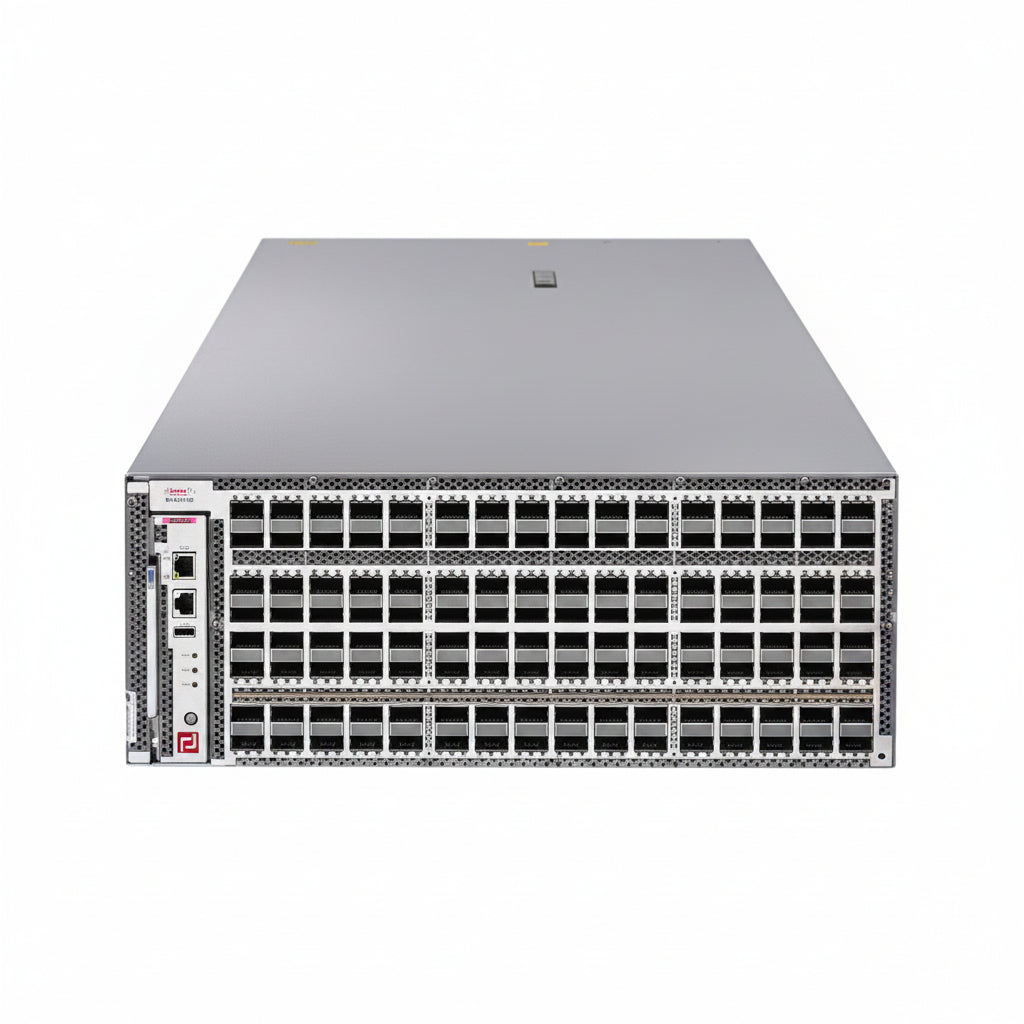

H3C S9827-128DH-W1 | 128-Port 400G Data Center L3 Ethernet Switch

Purpose-built for hyperscale data centers, cloud computing, and AIGC workloads, the H3C S9827-128DH-W1 delivers 102.4 Tbps switching capacity with zero oversubscription — keeping your most bandwidth-intensive applications running at full speed.

Key Specifications

• Model: H3C S9827-128DH-W1 (LS-9827-128DH-W1)
• Form Factor: 4U Rack-mount, Layer 3 Data Center Switch
• Ports: 128 × QSFP112 (native 400GE; splittable to 256×200GE or 100GE compatible)
• Switching Capacity: 102.4 Tbps
• Forwarding Rate: 21,000 Mpps (21.1 Bpps)
• CPU / Memory: 4-core 2.6GHz | 16GB DRAM | 64GB eMMC | 256MB×2 NOR Flash
• Dimensions: 442 × 760 × 175 mm | ≤ 40.2 kg (fully configured)
• Power: Typical 850W / Max 3,888W (full load with transceivers)
• Redundancy: 2+2 power slots, 7+1 fan slots, fully hot-swappable
• Reliability: MTBF >50 years | MTTR <1 hour | Availability 99.999927%

Why Choose the S9827-128DH-W1?

🔹 Ultra-High Density, Zero Oversubscription

128 QSFP112 ports deliver full-line-rate 400GE forwarding. Flexible port splitting (256×200GE or 100GE) maximizes server access density without bottlenecks.

🔹 Intelligent Lossless Fabric

Full support for RoCE v2, PFC, ECN, AI ECN, and Agile Buffer technology ensures zero packet loss and ultra-low latency — essential for GPU/DPU clusters, AIGC inference, and distributed storage.

🔹 SDN-Ready & Fully Programmable

Programmable switch ASIC with Netconf, gRPC, and Telemetry support enables real-time monitoring, automated fault diagnosis, and dynamic configuration — built for modern DevOps and NetOps workflows.

🔹 Carrier-Grade Reliability

Front-to-rear airflow, redundant hot-swap power and fan modules, and multi-layer protection (over-voltage, over-current, over-temperature) guarantee 24/7 uptime in mission-critical environments.

🔹 Comprehensive Security & Management

SNMPv1/v2/v3, CLI, SSH 2.0, SSL, ACL, AAA, 802.1X authentication, and native integration with H3C iMC for centralized, simplified network operations.

Ideal For

• Spine nodes in Spine-Leaf data center architectures
• AIGC / AI / ML training and inference clusters
• Cloud computing platforms and distributed storage systems
• High-performance GPU/DPU server interconnects
• Core/aggregation layers for enterprises, carriers, and internet companies

Package Contents

1 × H3C S9827-128DH-W1 Switch | 1 × Console Cable | 1 × User Manual
Power modules and optical transceivers sold separately.

Technical Support

Professional pre-sales consultation and post-sales warranty service included. Customized network solutions available on request. Specifications subject to change — please confirm latest parameters before ordering.
