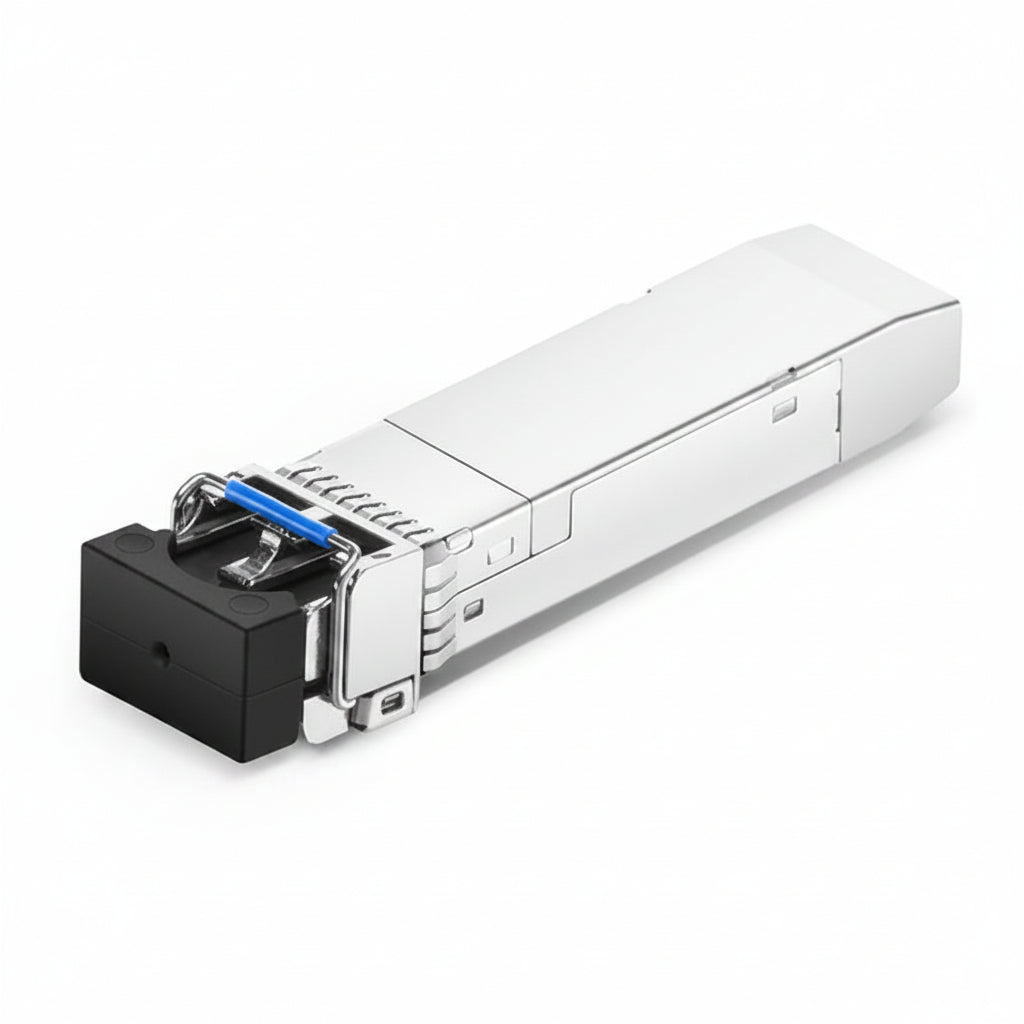

H3C SFP-XG-LX-SM1310-D 10GBASE-LR SFP+ Transceiver Module | 1310nm | 10km SMF | DDM

Product Overview

The H3C SFP-XG-LX-SM1310-D is a genuine H3C 10GBASE-LR SFP+ optical transceiver engineered for long-reach, high-speed connectivity in enterprise and data center environments. Transmitting at 1310nm over single-mode fiber up to 10km, it delivers rock-solid 10Gbps performance for backbone links, data center interconnects, and campus aggregation — all in a hot-pluggable SFP+ form factor that installs in seconds.

With built-in Digital Diagnostic Monitoring (DDM/DOM), your network team gets real-time visibility into temperature, voltage, and optical power levels — enabling proactive maintenance before issues become outages. Certified for H3C switches, this is the genuine OEM module that just works.

Key Features

• 10Gbps Wire-Speed Performance: Fully compliant with 10GBASE-LR, supporting up to 10.3125 Gbps data rate.
• 10km Long-Range Transmission: 1310nm DFB laser over 9/125μm single-mode fiber (SMF) — ideal for campus and inter-building links.
• Genuine H3C Certified: Fully compatible with H3C S5570S-EI, S5130S-EI, S9827, S9855, S6800, S6805 series and all H3C 10G SFP+ ports.
• DDM/DOM Support: Real-time monitoring of TX/RX power, temperature, voltage, and bias current for proactive network management.
• Hot-Pluggable SFP+: Tool-free installation with no network downtime required.
• Low Power & Reliable: <1W power consumption, 3.3V supply, Class 1 laser safety, compliant with SFF-8472, SFF-8431, and IEEE 802.3ae.

Technical Specifications

• Model: SFP-XG-LX-SM1310-D
• Form Factor: SFP+ (Enhanced Small Form-factor Pluggable)
• Data Rate: 10.3125 Gbps
• Wavelength: 1310 nm
• Transmission Distance: Up to 10 km over SMF
• Fiber Type: Single-mode Fiber (SMF, 9/125μm)
• Connector: Duplex LC
• Transmit Power: -6.5 ~ -0.5 dBm
• Receive Sensitivity: ≤ -14.4 dBm
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Power Supply: 3.3V
• Power Consumption: < 1.0 W
• Diagnostics: Digital Diagnostic Monitoring (DDM/DOM)
• Laser Safety: Class 1 Laser Product
• Standards: SFF-8472, SFF-8431, IEEE 802.3ae

Compatibility

Compatible with all H3C 10G SFP+ ports, including:

• S5570S-EI Series
• S5130S-EI Series
• S9827 / S9855 Series
• S6800 / S6805 Series
• Other H3C switches with 10G SFP+ slots

Applications

• Data center server-to-switch and switch-to-switch interconnects
• Enterprise network backbone and aggregation layers
• Long-distance 10G Ethernet links (up to 10km)
• Campus inter-building fiber connections

Package Includes

• 1 × H3C SFP-XG-LX-SM1310-D 10G SFP+ Optical Transceiver
• H3C Original Packaging
