Hisense 100G QSFP28 LR4 Optical Transceiver | 10km SMF | LTA1315-PC+

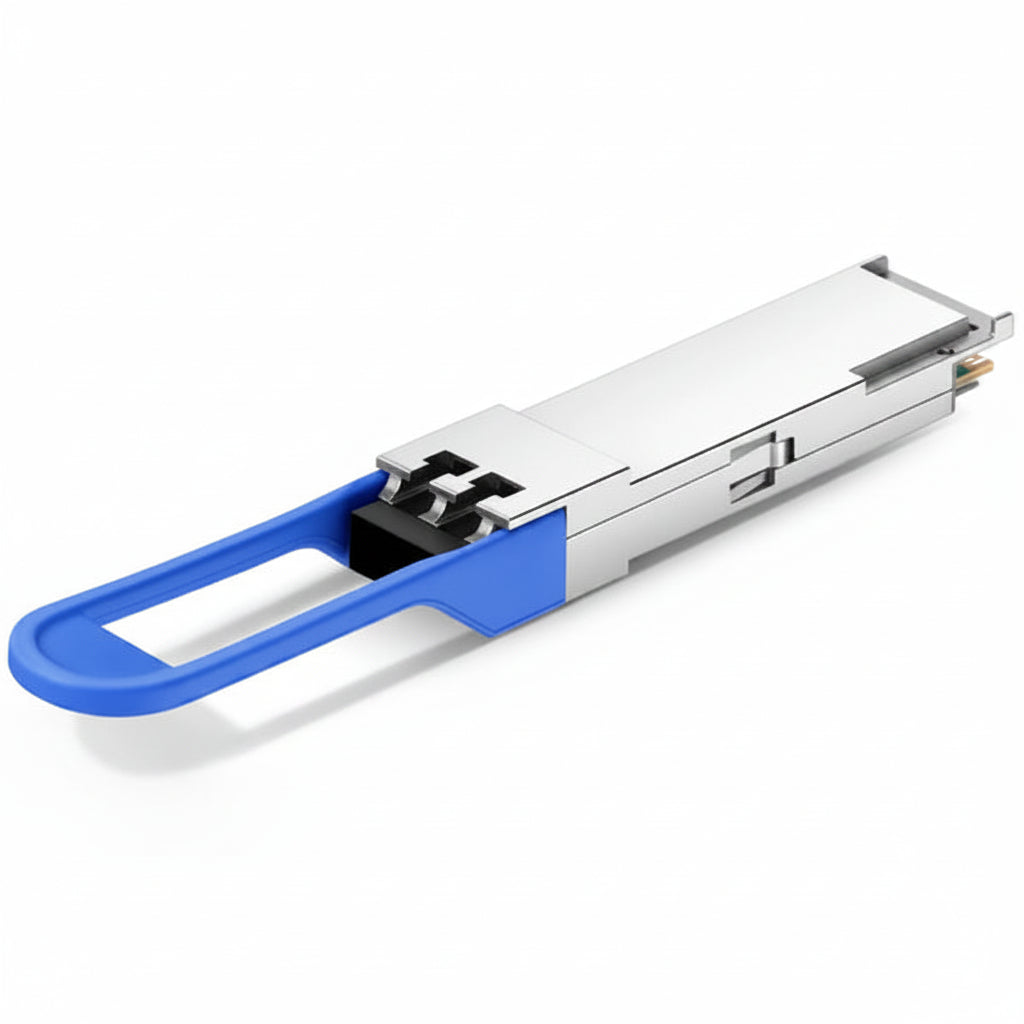

Hisense 100G QSFP28 LR4 Optical Transceiver Module (LTA1315-PC+)

Upgrade your network infrastructure with the Hisense 100G QSFP28 LR4 optical transceiver module (Model: LTA1315-PC+). This high-performance module delivers blazing-fast 100Gbps connectivity over single-mode fiber (SMF) for distances up to 10km. Engineered with 4-channel LAN WDM technology and high-sensitivity PIN receivers, it ensures stable, error-free transmission in enterprise and data center environments.

Built to strict industry standards, it features hot-swappable installation, comprehensive digital diagnostics (DDM), and a rugged design for commercial temperature ranges. Perfect for 100G Ethernet switches, routers, and high-density fiber panels.

Key Features

• 100G High-Speed Transmission: Fully compliant with IEEE 802.3ba 100GBASE-LR4 and QSFP28 MSA standards, supporting a 103.1Gb/s aggregate data rate.
• Long-Reach 10km: Operates over single-mode fiber (SMF) with a maximum link distance of 10 kilometers, ideal for data center interconnections.
• Advanced DDM/DOM Function: Integrated Digital Diagnostic Monitoring for real-time tracking of optical power, temperature, voltage, and bias current.
• Hot-Pluggable & Reliable: QSFP28 form factor with a robust metal housing, operating temperature 0°C to 70°C, low power consumption <3.5W.
• Wide Compatibility: Designed for use with major data center switches (Cisco, H3C, Huawei, Mellanox, Arista, etc.) and fiber optic equipment.
• RoHS Compliant: Environmentally friendly, lead-free construction.
