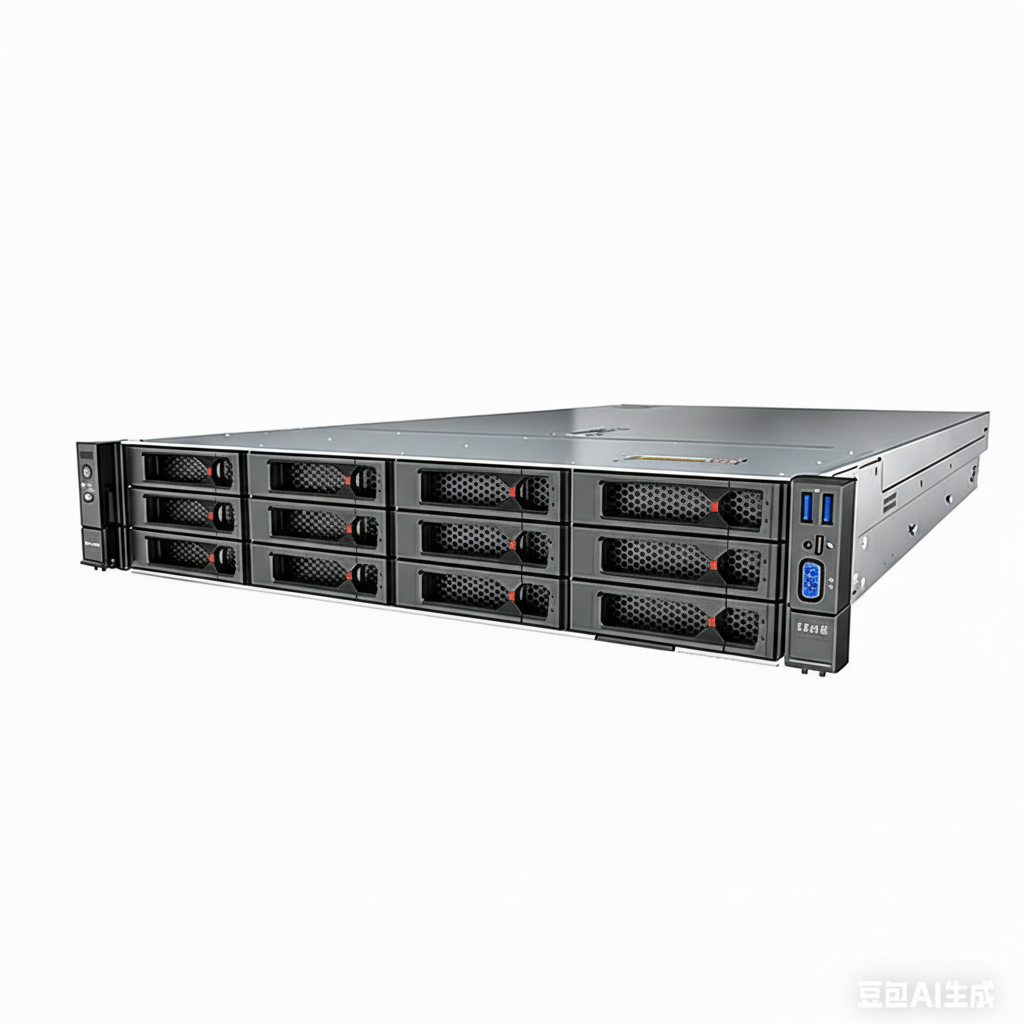

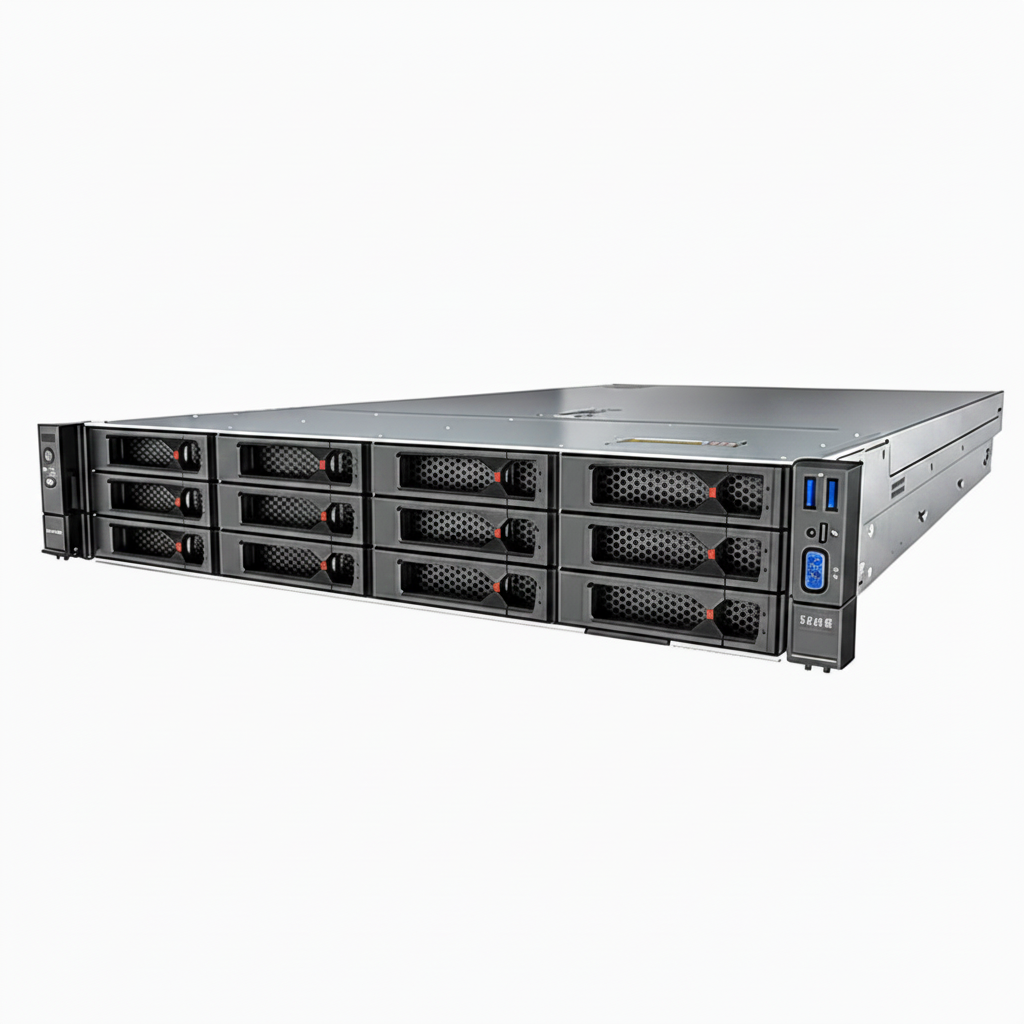

XFusion FusionServer 2258 V7 — Enterprise 2U Dual-Socket Server
The FusionServer 2258 V7 is a high-performance 2U dual-socket rack server built for modern enterprise workloads including virtualization, databases, cloud computing, AI inference, big data, VDI, and software-defined storage (SDS). Powered by the latest 4th Gen AMD EPYC™ processors, PCIe 5.0, and DDR5 memory, it delivers a significant leap in compute density, bandwidth, and energy efficiency.
1. Product Overview
| Item | Details |
|---|---|
| Model | FusionServer 2258 V7 |
| Form Factor | 2U Dual-Socket Rack Server |
| Target Workloads | Virtualization, Database, Cloud Computing, AI Inference, Big Data, VDI, SDS |
2. Core Hardware Specifications
| Category | Specification |
|---|---|
| Processors | 1 or 2x 4th Gen AMD EPYC™ 9004 Series; up to 64 cores / 128 threads per CPU; up to 400W TDP |
| Memory | DDR5 up to 4800 MT/s; 12 or 24 DIMM slots; max 1,536 GB total |
| Storage |
NVMe SSD: up to 24x U.2 SAS/SATA SSD: up to 25x 2.5" SAS/SATA HDD: up to 16x 3.5" Boot: 2x M.2 SSD (SATA/NVMe) |
| Expansion I/O | 1x OCP 3.0 FLEX IO slot + 8x PCIe slots (including 4x PCIe 5.0) Supports 2x double-wide or 8x single-wide GPU accelerators |
| Power Supply | 2x redundant hot-swap Titanium-grade PSUs, 96%+ efficiency |
| Cooling | 4x hot-swap counter-rotating fans, N+1 redundancy |
| Dimensions | 86.1mm (H) × 447mm (W) × 798mm (D) |
3. Key Technology Advantages
| Dimension | Highlights |
|---|---|
| Performance | PCIe 5.0 + DDR5 + high core-count CPUs deliver up to 50% compute uplift over the previous generation |
| Reliability | Full redundancy on critical components with hot-swap support; TPM 2.0 and Secure Boot enabled |
| Management | Integrated iBMC with zero-reboot live firmware updates; unified management via FusionDirector |
| Energy Efficiency | Titanium-grade PSUs combined with 3D airflow design keep full-load power consumption below industry benchmarks |
4. OS Compatibility
The FusionServer 2258 V7 supports all major enterprise operating systems, including:
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- VMware ESXi
- Windows Server
Summary
The XFusion FusionServer 2258 V7 is engineered for enterprises that demand maximum compute density, storage flexibility, and operational reliability in a compact 2U footprint. Whether you're scaling AI inference pipelines, consolidating virtualized workloads, or building a software-defined data center, the 2258 V7 delivers the performance and resilience your infrastructure requires.
