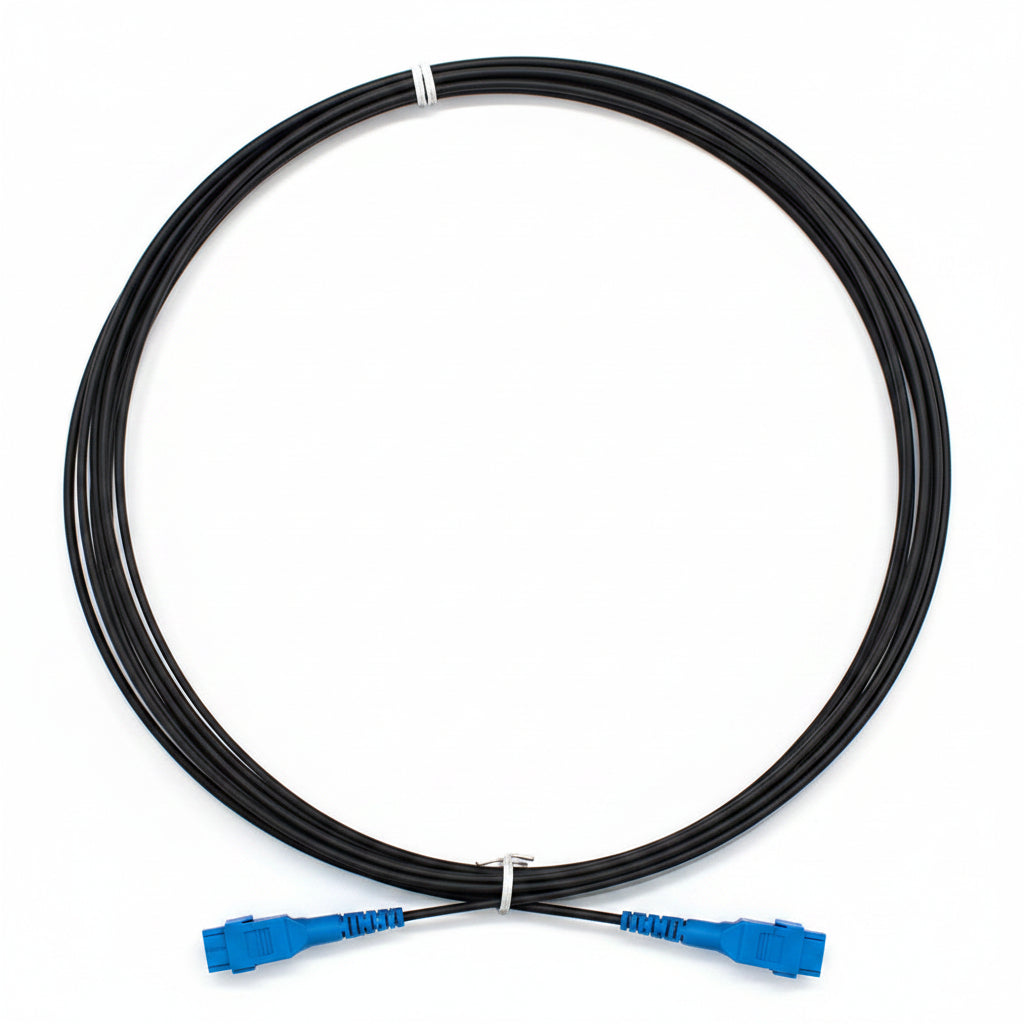

YOFC iCONEC DLCU to DLCU UPC Duplex Single-Mode Fiber Patch Cord | G657A2 Bend-Insensitive | LSZH Jacket | 2.2mm Diameter | 30 Meter

YOFC iCONEC Series — Professional Fiber Optic Patch Cord

The YOFC iCONEC series fiber optic patch cord delivers professional-grade performance for enterprise networks, data centers, and telecommunication infrastructures. This 30-meter duplex assembly features DLCU to DLCU UPC connectors, G657A2 bend-insensitive single-mode fiber, and a flexible LSZH jacket—engineered for reliable, low-loss signal transmission in demanding environments.

Built with YOFC's advanced manufacturing standards, each patch cord undergoes rigorous optical testing to ensure consistent performance. The G657A2 fiber provides superior bending performance, enabling installation in tight spaces without signal degradation. The LSZH jacket enhances safety by reducing toxic fume emissions in case of fire, making it suitable for commercial and residential applications.

Ideal for data center interconnects, LAN structured cabling, fiber distribution frames, FTTH networks, and industrial communication systems. Supports high-speed protocols including 10Gbps, 40Gbps, and 100Gbps Ethernet connections.

Key Features

• PREMIUM G657A2 BEND-INSENSITIVE FIBER: Utilizes ITU-T G657A2 single-mode fiber (9/125μm); exceptional bending resistance with minimal macro-bending loss; operates over full O-E-S-C-L band (1260–1625nm); fully compatible with standard G.652 fiber infrastructure
• HIGH-PERFORMANCE DLCU UPC CONNECTORS: Equipped with precision ceramic ferrules; 100% factory tested for insertion loss and return loss; typical IL ≤0.20dB, max IL ≤0.30dB, RL ≥55dB; compact design ideal for high-density data center racks
• SAFE LSZH JACKET MATERIAL: Low smoke zero halogen outer jacket; compliant with IEC 60332 and IEC 61034 safety standards; emits low smoke and zero halogen during fire; safe for indoor and confined space installation
• ROBUST & DURABLE CONSTRUCTION: Features aramid yarn strength members; withstands 500+ mating cycles; operating temperature range from -40°C to +75°C; resistant to abrasion, chemicals, and mechanical stress
• GLOBAL STANDARDS COMPLIANCE: Fully RoHS certified; meets ISO/IEC 60794 and Telcordia GR-326-CORE specifications; designed for 10G/40G/100G high-speed network applications

Technical Specifications

• Brand: YOFC (Yangtze Optical Fibre and Cable)
• Model: iCONEC-DLCU-DLCU-LSZH_G657A2-22-30m
• Fiber Type: G657A2 Bend-Insensitive Single-Mode (9/125μm)
• Connector: DLCU to DLCU, UPC Polished
• Cable Diameter: 2.2 mm
• Length: 30 Meter
• Jacket: LSZH (Low Smoke Zero Halogen)
• Insertion Loss: Typical ≤0.20dB, Max ≤0.30dB
• Return Loss: ≥55dB
• Operating Temperature: -40°C to +75°C
• Standards: RoHS, ISO/IEC 60794, Telcordia GR-326-CORE
