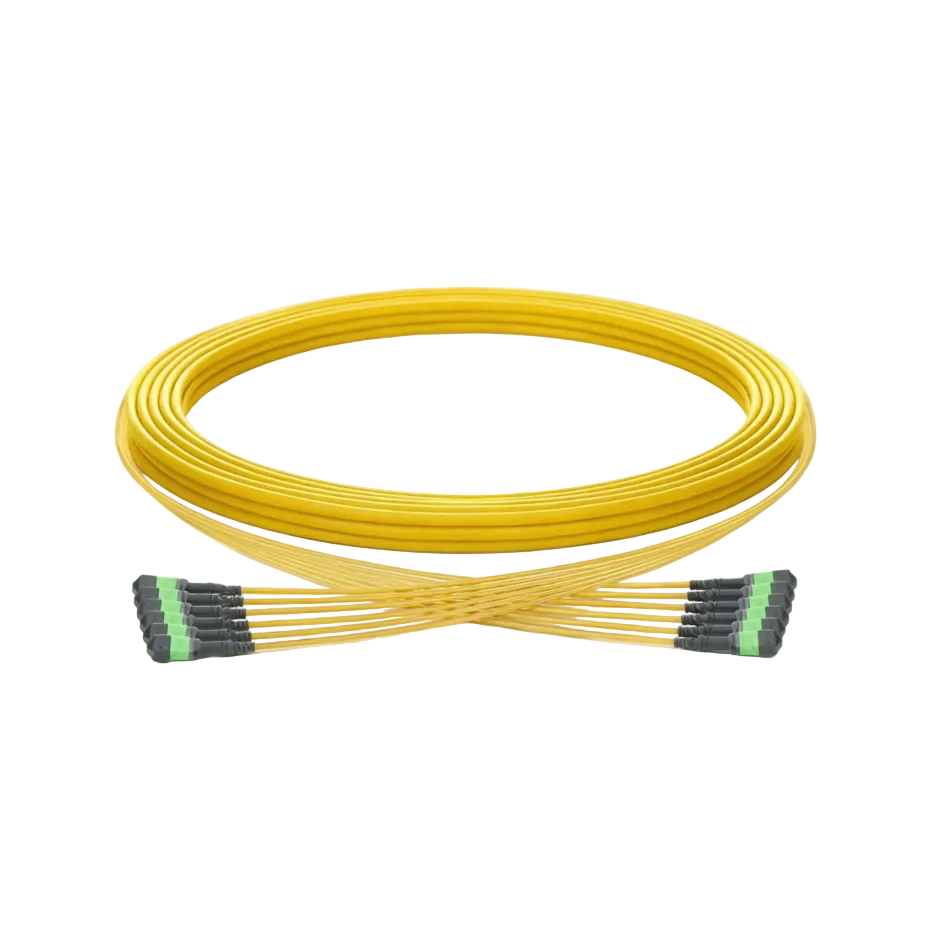

YOFC iCONEC 100G OS2 MPO/APC(F) Fiber Patch Cable | G657A2 LSZH | 50m

YOFC iCONEC MPO/APC(F) OS2 Single-Mode Fiber Patch Cable – 50m (8/12 Fibers, G657A2, LSZH)

Engineered for mission-critical data center and enterprise networks, this 50-meter YOFC iCONEC pre-terminated fiber assembly delivers reliable, high-speed optical connectivity for 40G, 100G, and 400G Ethernet applications. Built with precision iCONEC MPO/APC female connectors and bend-insensitive G657A2 single-mode fiber (OS2), it ensures low loss, high return loss, and exceptional durability in dense wiring environments.

The LSZH jacket meets strict safety standards—emitting low smoke and no halogen in case of fire—making it ideal for indoor data centers, enterprise backbones, and campus installations. Each cable is 100% factory pre-terminated and optically tested for guaranteed performance right out of the box.

Key Features

• High-Density 8/12-Core MPO Connectivity: Dual iCONEC MPO/APC (Female) connectors; ideal for 40G/100G/400G QSFP+/QSFP28/QSFP-DD transceivers and leaf-spine data center architectures.
• OS2 G657A2 Bend-Insensitive Fiber: 9/125μm single-mode fiber; stable signal transmission in tight bends (min. bend radius 7.5mm); low attenuation ≤0.35dB/km@1310nm, ≤0.22dB/km@1550nm.
• MPO/APC Polished – Superior Return Loss: APC polishing on both ends; RL ≥60dB; IL ≤0.30dB per connector; compliant with TIA/EIA-604-5 & IEC 61754; 100% factory tested.
• LSZH Jacket & Rugged Durability: Low Smoke Zero Halogen (LSZH) yellow jacket, OFNR-rated; operating temperature −40°C to +75°C; ≥500 mating cycles for long service life.
• 50m Length & Wide Compatibility: Fully compatible with Cisco, H3C, Huawei, Arista, Mellanox switches and 40G/100G/400G QSFP transceivers; plug-and-play deployment.

Applications

• Data center high-density backbone cabling
• 40G/100G/400G QSFP+/QSFP28/QSFP-DD switch connections
• Server-to-switch and leaf-spine architecture
• Enterprise LAN backbones and campus connections
• Indoor optical distribution and pre-terminated systems

Why Choose YOFC iCONEC?

• 100% factory pre-terminated & tested – guaranteed performance
• G657A2 bend-insensitive fiber – minimal loss in tight bends
• LSZH jacket – safe for public spaces, low smoke, no halogen
• MPO/APC polished – superior return loss for high-speed links
• iCONEC precision connectors – stable, low-loss mating

Specifications
