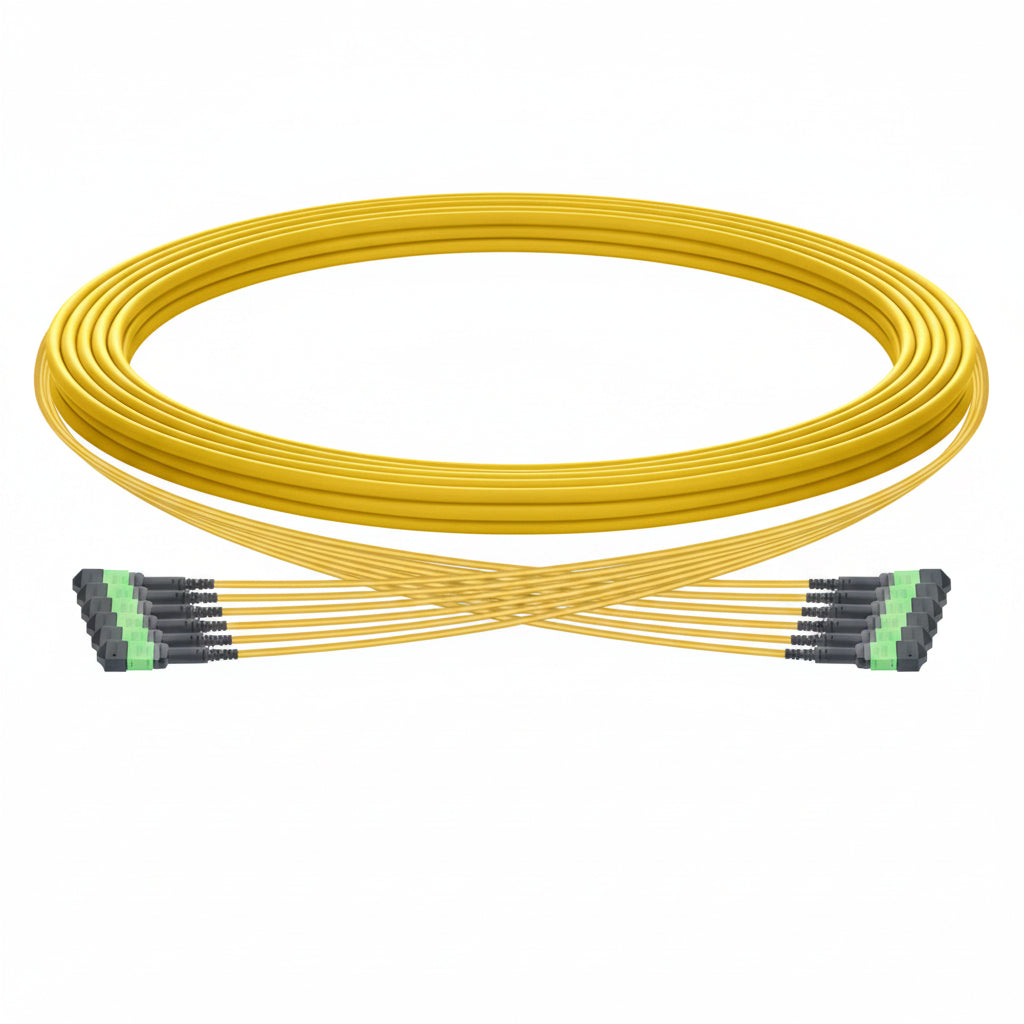

YOFC 8/12-Core OS2 MPO/APC(F) Fiber Patch Cable | G657A2 LSZH | 30m

YOFC 8/12-Core OS2 Single-Mode MPO/APC Fiber Patch Cable (30m)

Engineered for high-performance data center and telecommunications infrastructure, this YOFC fiber patch cord features dual iCONEC MPO/APC(F) connectors, 8 or 12 single-mode fibers, OS2 grade G657A2 fiber, and a durable LSZH jacket. It delivers reliable, low-loss optical connectivity for 40GBASE-SR4, 100GBASE-CWDM4/PSM4 networks and high-density parallel optical transmission systems.

Constructed with bend-insensitive G657A2 fiber, it ensures stable signal transmission even in constrained routing environments. The LSZH jacket meets strict safety standards, emitting low smoke and no halogen in case of fire—making it ideal for indoor data center, enterprise, and campus backbone applications.

Each cable is 100% factory pre-terminated and optically tested to guarantee insertion loss ≤0.35dB and return loss ≥65dB. With a 30-meter length, MPO/APC female-to-female configuration, and broad compatibility with major networking hardware, it provides a robust, future-proof solution for high-speed fiber interconnections.

Key Features

• High-Density 8/12-Core MPO Connectivity: YOFC single-mode fiber patch cable with 8/12 fibers, dual iCONEC MPO/APC (Female) connectors—ideal for 40G/100G QSFP transceivers, data center leaf-spine networks, and cabinet interconnections.
• OS2 G657A2 Single-Mode Fiber & Low Loss: Premium OS2 grade G657A2 9/125μm fiber; attenuation ≤0.35dB/km@1310nm & ≤0.22dB/km@1550nm; insertion loss ≤0.35dB; return loss ≥65dB for stable long-distance transmission.
• MPO/APC Polished & iCONEC Precision: APC (Angled Physical Contact) polishing on both ends for low back reflection; compliant with IEC 61754-7 & TIA/EIA 604-5; 100% factory pre-terminated and tested.
• LSZH Jacket & Rugged Durability: Low Smoke Zero Halogen outer sheath—flame-retardant and eco-friendly for indoor data center use. Bend-insensitive G657A2 fiber; operating temperature −20°C to +60°C; ≥500 mating cycles.
• 30m Length & Wide Compatibility: Fully compatible with Cisco, H3C, Huawei, Arista, Mellanox switches and 40G/100G QSFP transceivers; plug-and-play for easy deployment.

Specifications
